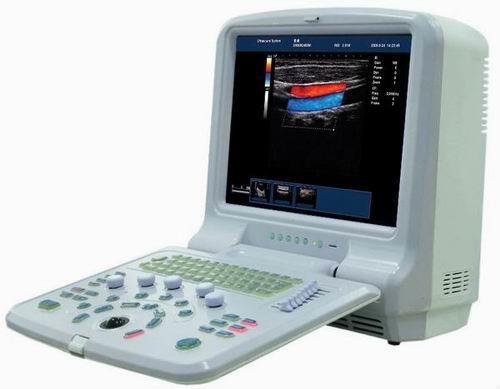

KR-3000 Portable Color Doppler Ultrasound System
Specification
Display Mode
B & W mode: B, 2B, B/M, 4B
Color Doppler mode: CFM, PD, PW
Triplex: Real-time simultaneous 2D, Doppler & CFM
Duplex: Real-time simultaneous 2D & Doppler
Gray Scale: 256
Display: 15’’ LCD monitor
Transducer frequency: 2-10 MHz
Digital technology: Dynamic Receiving Focusing (DRF)
Dynamic Frequency Scanning (DFS)
Scanning depth: 240mm
Imaging Processing
Pre-processing: 8-segment TGC
IP (Image Processing)
Gain (B&W, Color)
PRF
Dynamic range
Image enhancement
Frame average
Scanning angle
High resolution/High frame rate
Acoustic power
Post-processing: gray map
Black/white reverse
Up/down reverse
Functions:
Cine-loop: 256 frame cine loop memory
Storage media: 160G massive image-storage capacity,
USB 2.0 port for image transfer
Zoom: Image zoom in and partial zoom
Measurement & Calculations
B mode: distance, circumference, area, volume,
angle, fetal growth curve
M mode: distance, time, velocity, heart rate
Doppler Mode: Vs, Vd, RI, PI, SD
Software packages: abdomen, gynecology, obstetrics,
cardiology, small parts, urology
Others
Transducer connector: 3 active transducer connector ports
Peripheral ports: video, S-video, VGA，USB ports
Power supply: 100~240VAC +/-10%，50Hz/60Hz
Standard Configurations
KR-3000 Main Unit
15” LCD monitor
THI (Tissue Harmonic Imaging)
Three transducer connectors
160G image-storage capacity
Two USB ports
Measurement & calculation software packages
Options
3.5Mhz Electronic convex array transducer
7.5Mhz Electronic linear array transducer
5.0Mhz Electronic micro-convex array transducer
6.0Mhz Electronic transvaginal array transducer
Video printer
