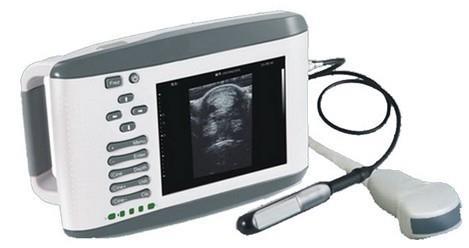

KR-880P Palm Size

Digital ultrasonic diagnostic system



Technical Parameter

1. Gray Scale: 256;

2. 6.4” LCD Display;

3. Dual power supply system

AC 100-240V ～ Frequency: 50-60Hz,

Lithium Battery: rechargeable, 2200mAh, continuous working 2 to 3 hours;

4. Power Consumption: ≤40VA;

5. Main Unit Size: approx. 326×162×47mm (L×H×D)



  Primary Function

1. Display Mode: B, B/B, B/M, M, 4B;

2. M Speed: 1s, 2s, 3s, 4s, 5s, 6s, 7s, 8s;

3. Magnification: ×0.8, ×1.0, ×1.2, ×1.5, ×1.6, ×2.0, ×2.4, ×3.0 ;

4. Depth enhancement/pan function;

5. Local Zoom;

6. Adjustment and display of near field, far field, total gain and dynamic range;

7. Single-point, multi-point focusing;

8. Frequency conversion;

9. Angle change;

10. Frame correlation function;

11. Gamma correction and edge enhancement for image post-processing;

12. Image freeze/unfreeze;

13. Vertical, horizontal flip and B/W conversion;

14. Pseudo color display;

15. Case information, image annotation and auto time display;

16. Measurement of distance, circumference, area, volume, slope, heart rate and cycle;

17. Obstetric package, automatic calculation of fetus weight;

18. Energy saving;

19. 128 frames built-in image storage

20. 256 frames cine loop

21. Movie playback;

22. Obstetric report;

23. PAL-NTSC convertible

24. Image transfer computer by USB interface;

25. 40 kinds of body mark



  Standard Parts

1. Main unit

2. 3.5MHz convex array probe

3. One probe connector



  Optional Parts

1. thermal printer

2. 6.5MHz endo-cavity probe

3. 7.5MHz linear superficial probe

4. 5.0MHz micro-convex probe

5. Mouse

6. Extra battery,

7. Car charger.

8. USB port drive & imaging workstation software for PC
