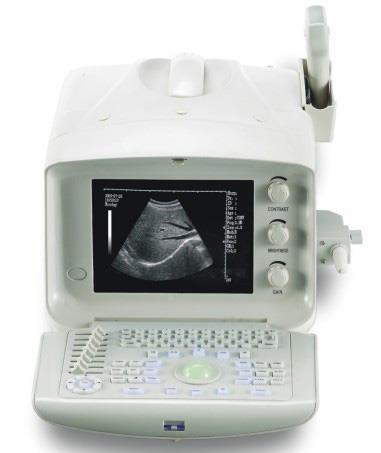

KR-1088V Portable Ultrasound Scanner

Technical Specifications:
◆Monitor:10 inches B/W monitor (SVGA non-interlaced )
◆Probe connector: 2
◆Imaging Mode: B, 2B, 4B, B/M, M
◆Standard 2.5/3.5/4.0/5.0 MHz Multifrequency convex abdominal probe
◆Application: diagnosis of abdomen, heart, thyroid, liver, kidney, spleen,bladder and the field of OB/GYN
◆Scanning depth (mm):≥160
◆Depth Scope (mm):0~240
◆Resolution (mm): horizontal resolution ≤3 (depth≤80), ≤4 (80
                   Vertical resolution ≤2  (depth≤80), ≤3 (80
◆Blind area (mm):≤5
◆Gray scale: 256
◆Dynamic range: 64~96db
◆Magnification:×0.8, ×1.0, ×1.2, ×1.5, ×1.8, ×2.0, and Partial Zoom.
◆8 segment TGC adjustment
◆Cine loop: 256/128-frame cine loop memory;
◆Electronic focusing: dynamic receiving focusing
◆Frame correlation:4 segments frame correlation (B, B+B, 4B)
◆Line correlation:4 segments line correlation (B, B+B, 4B)
◆Dot correlation:4 segments dot correlation (B, B+B, 4B)
◆Image turning:left/right reverse, black/white reverse, up/down reverse
◆Measurement& calculation: distance, circumference, area, volume and heart rate
B/GYN software package (BPD, GS, CRL, FL, AC and embryo weight,  automatically calculating the expected date of childbirth (EDC) and gestational weeks
◆Character input/display:time, date, patient’s ID, age, sex, panoramic word process
◆Body marks: 32
◆Image permanent storage: 8 Pics
◆VGA Port for pseudo color image output (PAL style)
◆USB 2.0 port for image flash disk storage (Optional)
◆Power Supply:AC220 ± 22V, 50HZ ±1HZ  /   AC110 ±11V, 60HZ ±1HZ
