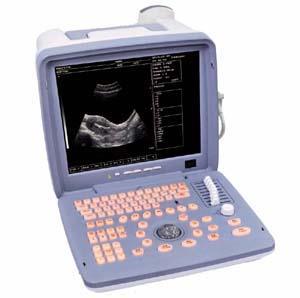

Professional 12 inches TFT Color LCD for medical imaging

Color image display in 8 colors

Advanced digital beam-forming imaging technology

Technical Parameters:

Display Mode: B, 2B, 4B, B/M, M
Monitor: 12.1 inches TFT Color LCD Screen for medical imaging

Pseudo color image display in 8 colors
Gray Scales: 256
Body Marks: 32

Frequency Conversion: 2.to10.0MHz
Image Processing : Pre-processing(Frame correlation, Line correlation),
Post-processing (Interpolation, 8-γ correction , Edge
enhancement), Histogram, Image Left/Right conversion,
Up/Down conversion, Black/White conversion, Image Depth scroll, etc.

Scanning Depth: 180mm-240mm
Cine loop: 256 frames
Image Storage: image permanent storage on machine,

USB flash disk connectible
TGC: 8-segment TGC and Overall Gain control
Image magnification: ×1.0×1.2×1.5×2.0. Image partial magnification
Measurement: Distance, Area/perimeter, Volume (ellipse method), Angle, Heart rate, Time, EF slope, Fetal age, Weight and EDCB
Software Packages:
Obstetrics : GS, CRL, BPD, HC, AC, FL, and LMP measure EDD etc;
Gynecology : Uterus, Left/Right ovary, Endometrial thickness;
Urology : Bladder, Left/ Right kidney, Prostate;

Precision of geometric position: cross direction≤10%; vertical direction≤ 5%

Blind Zone: ≤4mm

USB 2.0 port for image transfer

Applicable Voltage: 220V or 110V

Standard Configuration:

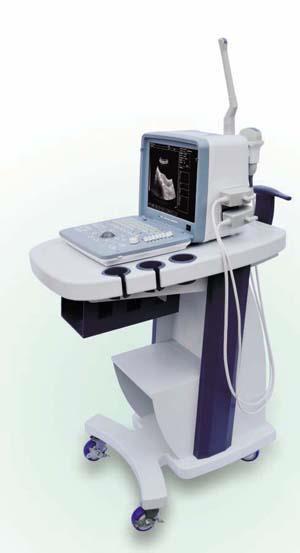

Full application Main unit (1pc),

Electronic convex array abdominal probe (1pc),

Two probe connectors,

Pseudo color image real display,

Image zoom in & Partial Zoom,

USB 2.0 port for image transfer

Optional Parts:

Electronic trans-vaginal probe (5.0-7.5MHz)

Linear superficial probe (6.5-8.5MHz)

Linear trans-rectal probe (5.0/7.5/10.0MHz)
